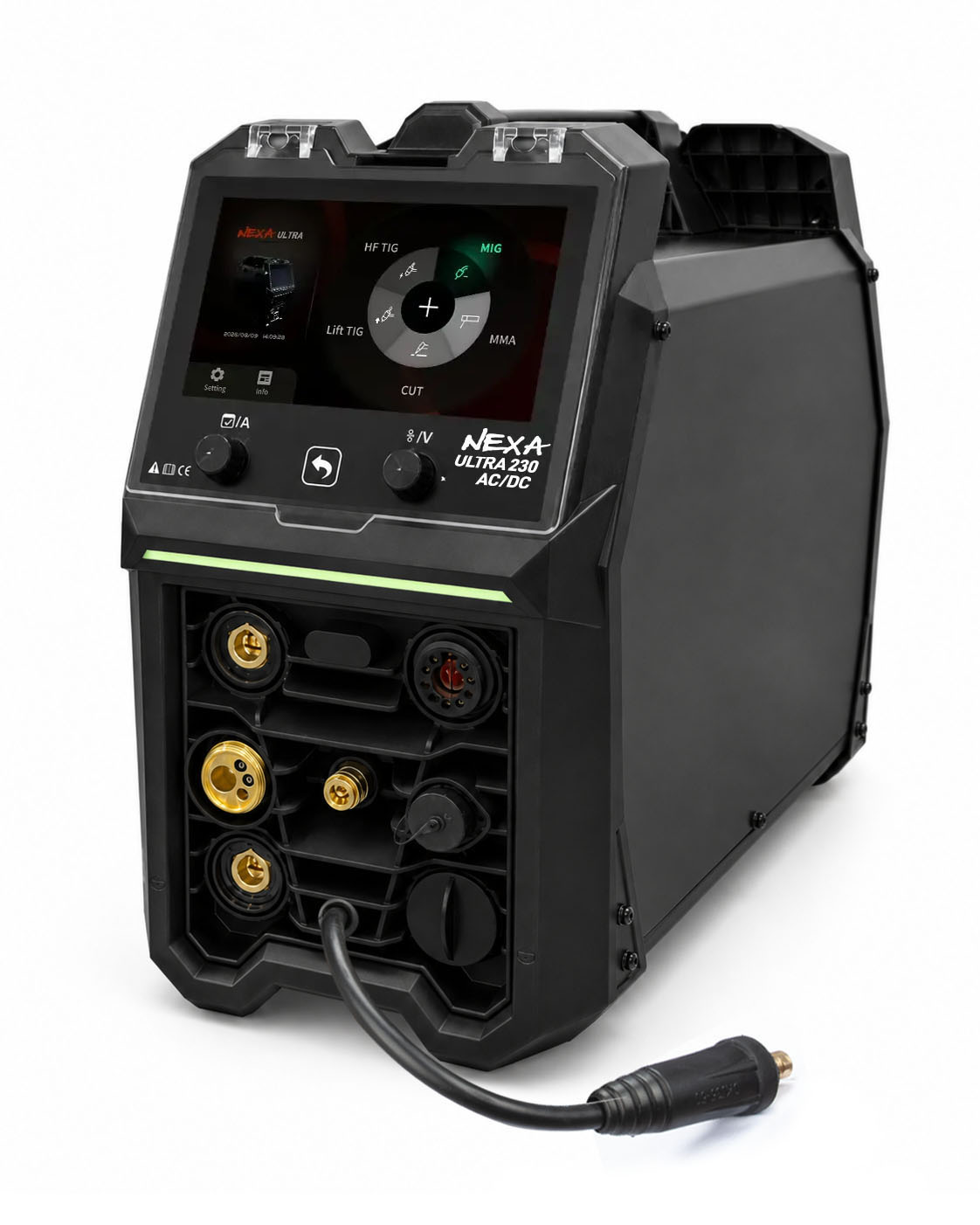

The ultimate compact all-in-one professional welder — Double-Pulse MIG, HF AC/DC Pulse TIG, MMA (Stick), Pulse Stick, and Non-HF Plasma Cutting in a single intelligent platform. Engineered to replace an entire workshop. 200A output • True AC/DC TIG • Non-HF Plasma • 7" LCD Touchscreen • Wireless & Bluetooth • Built-in PFC.

FEATURES & BENEFITS

Functions

5 processes in one machine: DC MIG / Pulse MIG / Double Pulse MIG (Synergic) • HF AC TIG Pulse • HF DC TIG Pulse • MMA (Stick) / Pulse Stick • Non-HF Plasma Cutting — all switchable from the front panel, no rewiring required.

✓
Synergic Double-Pulse MIG / MAG

Advanced double-pulse MIG with synergic programs for superior bead appearance and reduced spatter. Ideal for aluminium, stainless steel, and thin sheet metal. Wire diameters: 0.6 / 0.8 / 0.9 / 1.0 / 1.2 mm. Output range: 30–200A.

✓
HF AC/DC Pulse TIG

True AC TIG for aluminium and magnesium alloys. DC TIG for steel, stainless steel, copper, and titanium. Pulse on both AC & DC channels for precise heat control on thin materials. Output range: 10–200A.

✓
MMA (Stick) & Pulse Stick

Manual electrode welding for universal use under almost all conditions — including rusty, painted, or coated materials. Pulse Stick mode for improved arc stability and reduced spatter. Output range: 10–160A.

✓
Non-HF Plasma Cutting

High-performance plasma cutting without high-frequency ignition — safe near CNC machines and sensitive electronics. Starts reliably on rusty or coated surfaces. Max cutting thickness ≤20 mm; rated cutting thickness ≤15 mm. Output range: 20–40A.

✓

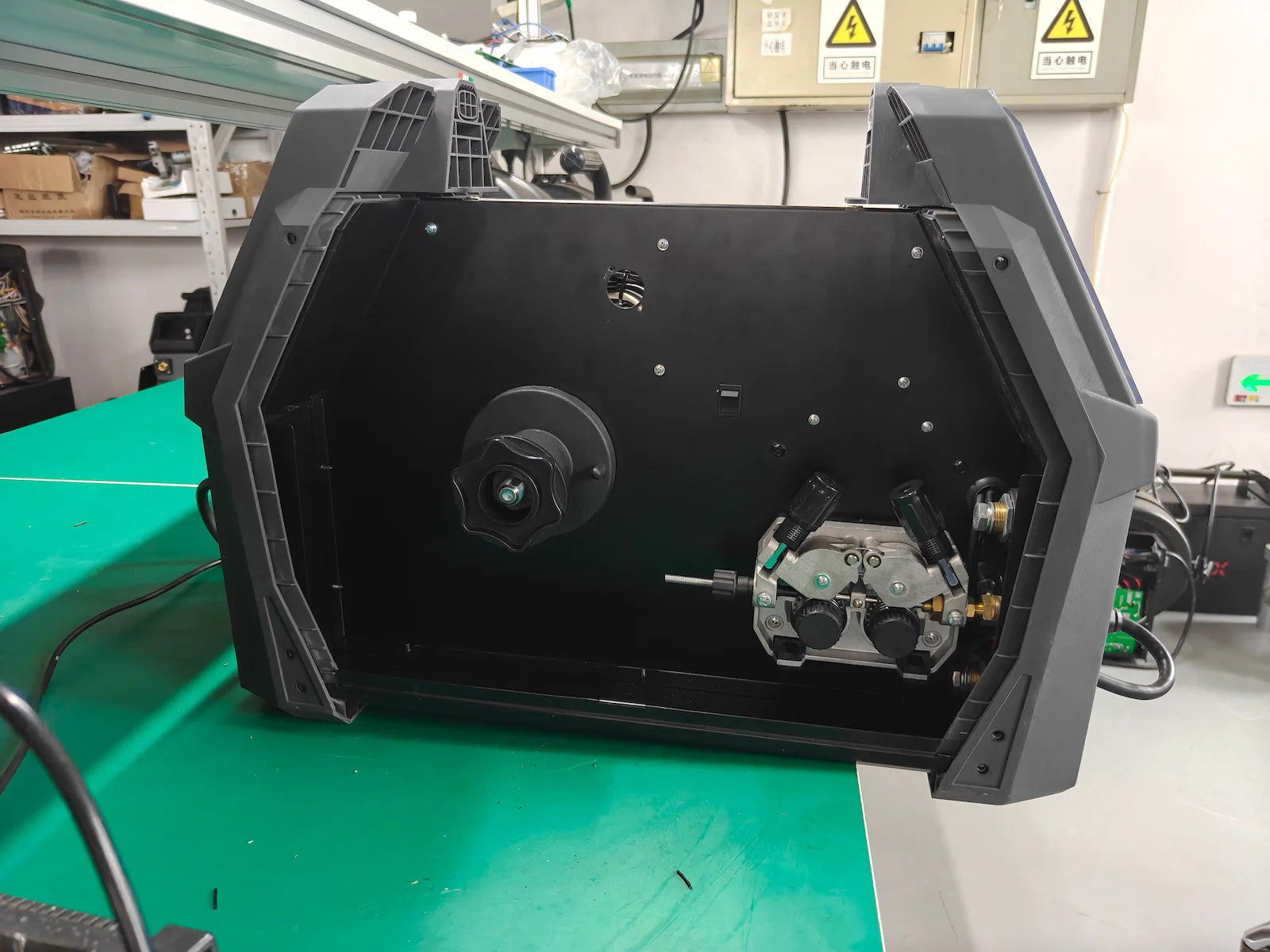

Heavy-Duty 4-Roll Wire Feeder

Precise 4-geared wire drive system for smooth, flawless wire feeding. Supports 1 kg and 5 kg wire spools. Compatible with wire diameters 0.6 / 0.8 / 0.9 / 1.0 / 1.2 mm for maximum versatility.

✓

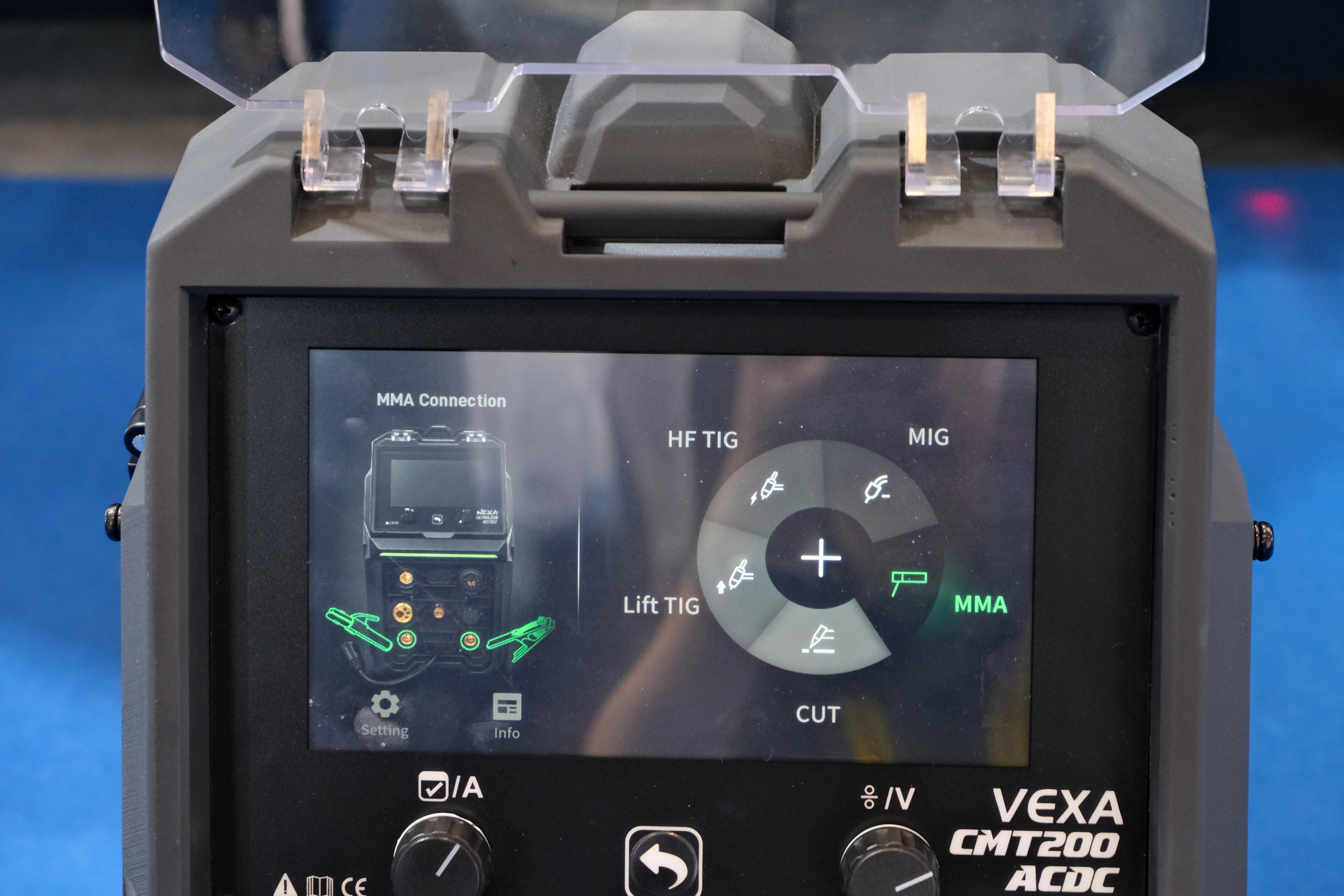

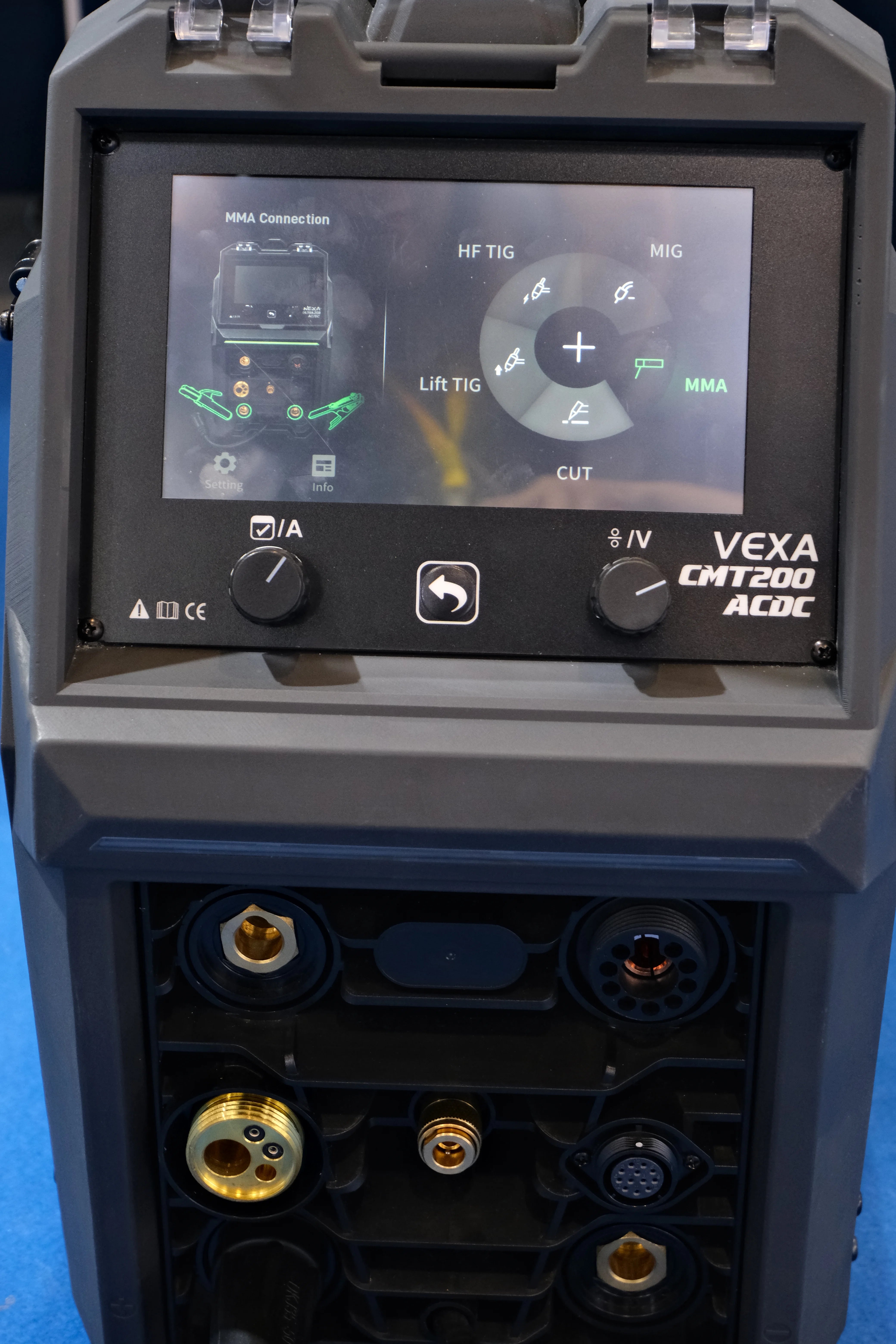

7" LCD Touchscreen + Classic Knobs

Intuitive 7-inch graphical touchscreen with advanced parameter display and classic knob control. Graphical status bar provides full visibility over every welding parameter in real time.

✓
Built-in PFC (Power Factor Correction)

Power Factor of 0.99 guarantees absolute reliability and stable welding performance under severe voltage fluctuations. Efficiency: 85%. Generator compatible for site use.

✓
Wireless & Bluetooth Connectivity

Integrated wireless and Bluetooth connection for smart remote control and parameter adjustment. Future-ready connectivity for professional workshop environments.

✓
Smart Fan & Dual Gas Inputs

Demand-controlled smart fan activates automatically based on internal temperature — quiet and energy-efficient. Dual gas inputs support multiple shielding gas configurations for maximum process flexibility.

TECHNICAL DATA

Parameter MIG AC TIG DC TIG MMA CUT
Model Headux NEXA ULTRA 200 AC/DC
Input Voltage 1-Phase AC 230V (±15%) / 50–60 Hz
Main Fuse 60A
Rated Input Power (KVA) 5.7 4.2 4.2 5.0 4.8
Rated Output (KVA) 4.8 3.6 3.6 4.2 3.8
No-load Voltage (V) 72 72 72 72 270
Output Current Range (A) 30–200 10–200 10–200 10–160 20–40
Output Voltage Range (V) 15.5–24 10.4–18 10.4–18 20.4–26.4 88–96
Duty Cycle @ Imax (40°C) 200A@25% / 100A@100% 200A@30% / 110A@100% 200A@30% / 110A@100% 160A@35% / 95A@100% 40A@40% / 25A@100%
Max Cutting Thickness — ≤20 mm
Rated Cutting Thickness — ≤15 mm
Wire Diameter (mm) 0.6 / 0.8 / 0.9 / 1.0 / 1.2
Efficiency 85%
Power Factor 0.99
Protection Class IP21S
Insulation Class F
Dimensions (L×W×H) 580 × 245 × 425 mm
Weight 22 kg

SCOPE OF DELIVERY

  • 1× Headux NEXA ULTRA 200 AC/DC Welding Machine
  • 4m WP26 TIG Torch (long back cup ×1, Alumina cup GR5/GR6/GR7 ×1, Collet body Ø2.4mm & Ø3.2mm) — Code: A13301-006
  • 3m Mx24 MIG Torch (incl. Spanner for MIG torches) — Code: A13303-089
  • 4m PT40 Plasma Cutting Torch (site wheel ×1, 0.8mm Nozzle ×2, Electrode ×2) — Code: A13302-016
  • 3m 25mm² Earth Lead — Code: A80403-001
  • 3m 25mm² Welding Lead — Code: A80404-013
  • 3m Gas Hose — Code: A80407-005

APPLICATIONS

Light Fabrication • Repair & Maintenance • Automotive Bodies • Food & Beverage • Aluminium Trailers • Boiler Tubes • Pipe Construction • Mechanical Contractors • Agricultural Equipment • Training Schools

FREQUENTLY ASKED QUESTIONS

What welding and cutting processes does the NEXA ULTRA 200 AC/DC support?
The NEXA ULTRA 200 AC/DC supports 5 core processes: DC MIG / Pulse MIG / Double-Pulse MIG (Synergic), HF AC TIG Pulse, HF DC TIG Pulse, MMA (Stick) / Pulse Stick, and Non-HF Plasma Cutting. All processes are switchable from the front panel — no rewiring required.
Can the NEXA ULTRA 200 AC/DC weld aluminium?
Yes. The machine features true HF AC TIG Pulse with adjustable parameters for high-quality aluminium and magnesium alloy welding. Double-Pulse MIG also supports aluminium wire feeding for MIG aluminium welding.
What is Non-HF Plasma and why does it matter?
Non-HF (Non-High-Frequency) plasma ignition eliminates electromagnetic interference caused by traditional HF plasma starters. Safe to use near CNC machines, PLCs, and sensitive electronics. Starts reliably on rusty, painted, or coated surfaces without pre-cleaning.
What is Double-Pulse MIG and what are its advantages?
Double-Pulse MIG alternates between two current levels to produce a fish-scale bead appearance similar to TIG welding, with significantly reduced spatter and better fusion control. Synergic programs make setup fast and repeatable — ideal for aluminium, stainless steel, and thin sheet metal.
What is PFC and why is it important?
Power Factor Correction (PFC) ensures the machine draws power efficiently from the mains supply (Power Factor: 0.99). This guarantees stable welding performance even under severe voltage fluctuations and makes the machine fully generator compatible for site use.
What wire sizes and spool weights does the NEXA ULTRA 200 support?
The 4-roll wire feeder supports wire diameters of 0.6 / 0.8 / 0.9 / 1.0 / 1.2 mm and is compatible with both 1 kg and 5 kg wire spools.
Is the NEXA ULTRA 200 AC/DC generator compatible?
Yes. Thanks to the built-in PFC (Power Factor Correction) with a power factor of 0.99, the machine operates reliably on generator power — ideal for site work and locations without stable mains supply.
What materials can the NEXA ULTRA 200 AC/DC weld and cut?
Welding: mild steel, stainless steel, aluminium, magnesium alloys, copper, and titanium. Plasma cutting: any electrically conductive metal including steel, stainless, aluminium, and copper — even on painted or rusty surfaces.
